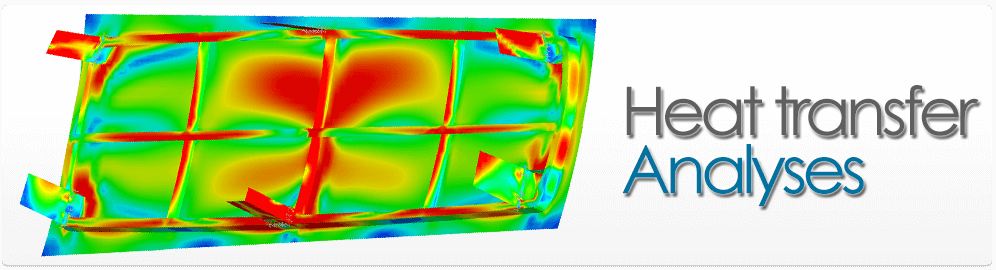

analyses heat transfer analyses

Heat transfer analyses take into account radiation, conduction, natural convection, forced convection and implementation of those methods in engineering systems. In addition, CaDCaM provides solutions for the effects of materials transition, using heat transfer analyses.

Our Capabilities in the Field

  1. Heat transfer in conduction in steady state mode and transient mode
  2. Heat transfer in free convection and forced convection
  3. Dimensions Analysis – heat transfer coefficients – free and forced convection
  4. Heat exchangers design
  5. Heat transfer in radiation
  6. General differential energy balance
  7. The thermal boundary layer and the flow’s boundary layer
  8. Material transfer mechanisms design
  9. Differential material balance
  10. Centralized boundary layer
אנליזות CADCAM

CaDCaM performs heat transfer analyses for the defense market and the civilian market. Analyses are performed in the fields of electronic packaging, aeronautics, air conditioning, areas of heavy duty industry, optics and medical equipment.

CaDCaM’s Main Purpose

CaDCaM’s main purpose in heat transfer analyses is to dissipate the energy which develops in electrical equipment. CaDCaM conducts heat transfer analysis using both FEM and CFD methods.

Work process

  1. 3D model preparation
  2. Testing according to ratio and skewness aspects
  3. Defining stress
  4. Defining ambient temperature and other environmental conditions
  5. Running the model
  6. Results
  7. Conclusions
אנליזות CADCAM

Mechanical Design

One of the most prominent areas in CaDCaM is Electronic Packaging. Electronic Packaging is an integral part of each development process of electronic devices. Packaging design is the stage where it is determined how and where each part is placed in the product, functionality wise and visual look is also being taken under consideration.CaDCaM specializes in electronic packaging and is a leading provider in the industry with a team of skilled and experienced engineers in the field.

CADENCE\NUMECA

NUMECA software provides premium solutions for flow analysis in the fields of aeronautics, marine industry, process industry and wind engineering.
The software provides advanced networking options and performs three-dimensional automated optimizations of turbo components, machines, aircraft
and air munitions using an artificial neural network and genetic algorithms to design the blade profile

MIDAS NFX

MIDAS IT is represented in Israel by CaDCaM which provides sales services, support and training.MIDAS NFX is a powerful, general purpose Finite Element Analysis (FEA) tool with an integrated graphical user interface (GUI) and model Editor which is used to analyze linear and nonlinear stress, dynamics, and heat transfer characteristics of structures and mechanical components. It represents the latest in FEA technology with some of the fastest solvers on the market along with accurate solutions that have been trusted for nearly 20 years by companies in all industries. MIDAS NFX is available on a wide variety of platforms including 32-bit and 64-bit Windows and Linux operating systems.
